This code only generates a delay of 500 milliseconds between the tone Therefore, if you use 500 milliseconds as the third argument in tone(), and follow that by a delay of 1000 milliseconds, you will only be creating a “quiet time” of 500 milliseconds. If you want to generate distinct beats, and you want to do this with the delay() function, then you need to keep in mind what we just said, that the tone() function uses one of the built in timers on the Arduino board. tone( pin number, frequency in hertz, duration in milliseconds) Let’s talk about that third parameter we can pass to the tone() function – it is the duration of the tone in milliseconds. You can start a tone and do other stuff – while the tone is playing in the background.īut, back to that question, how can we separate the noise a little? tone() works independently of the delay() function. This is because the tone() function uses one of the built in timers on the Arduino’s micro-contoller. We can try adding a delay(1000) after the tone(), but if you test this out, you will find it doesn’t get you anywhere. What if we want to add some space between the noise, so we can get a beat?
#PIEZO ARDUINO HOW TO#
How to Separate the Noise – AKA Make a Beat You will notice that the higher the number, the higher the pitch that is created. *Tone needs 2 arguments, but can take threeĢ) Frequency - this is in hertz (cycles per second) which determines the pitch of the noise madeĪs an experiment, try changing the second argument in tone() to 100, 1000, 10000, 650000 and listen to the effect it has on the audio signal. Specify digital pin on the Arduino that the positive lead of piezo buzzer is attached. Here is a simple sketch demonstrating the tone() function: //A sketch to demonstrate the tone() function The frequency is an unsigned integer and can take a value up to 65,535 – but if you are trying to make tones for the human ear, then values between 2,000 and 5,000 are where our ears are most tuned.
It’s painfully easy to set up a simple piezo speaker circuit with an Arduino. How to Set Up a Simple Piezo Speaker Circuit using Arduino I don’t know who comes up with this stuff, but they’re friggin’ mean. So basically, by shocking the plate over and over really fast, we can make noise. Again, the higher the frequency, the higher the pitch of the noise we hear.

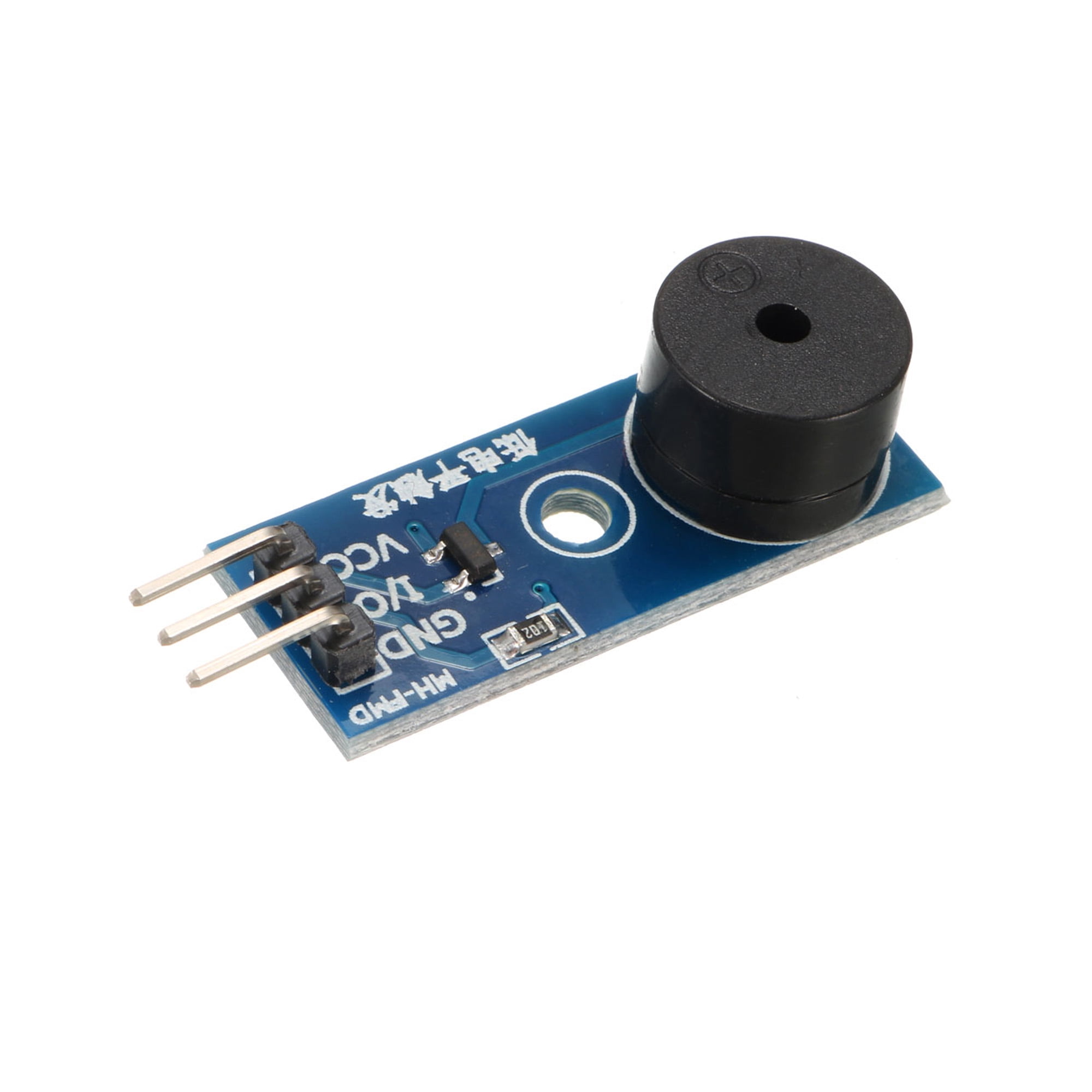

The faster you bend the material, the higher the pitch of the noise that’s produced. By adhering a piezo-electric disc to a thin metal plate, and then applying electricity, we can bend the metal back and forth, which in turn creates noise. It uses a material that’s piezoelectric, it actually changes shape when you apply electricity to it. It’s not like a regular speaker that you might think of. We are going to use a piezo buzzer to make some noise with Arduino.Ī piezo buzzer is pretty sweet. At least 12 cm dental floss, with a thick wax coating (mint flavored works best) Ī Quick Intro to Piezo Speakers (AKA Piezo Buzzers)īirds make it, kids make it – it can be music to our ears or pure torture.Arduino board, I am using an Arduino Uno.Our training covers the programming and hardware necessary for you to play audio files (i.e MP3, WAV) using an Arduino and an Audio board. If you want to get an in-depth course on using Audio Boards with Arduino, The limits you should know when using tone().The basics and more of using the tone() function.How to set up a simple piezo speaker circuit.A quick intro to piezo speakers (aka piezo buzzers).This is exactly what you will learn in this lesson:
Whatever your audible need, you will likely find the easiest, quickest and possibly the cheapest way to make some noise is using the tone() function and piezo speaker with your Arduino. Do you need to make some noise with Arduino? Maybe a simple tone for an alarm, maybe a beep to alert you when a specific input threshold is met, or maybe to play the Super Mario Brothers soundtrack to entertain your juvenile mind (it’s OK, we are all there, too).
